Monoblock Bushing
Monoblock Bushing is a distribution transformer accessory which is used to supply power from the oil filled distribution transformer to the low tension feeders. Monoblock can be utilized in both single-phase and multiphase systems. Due to our modern casting techniques & rigid testing, we ensure you to provide the best quality products.
Features

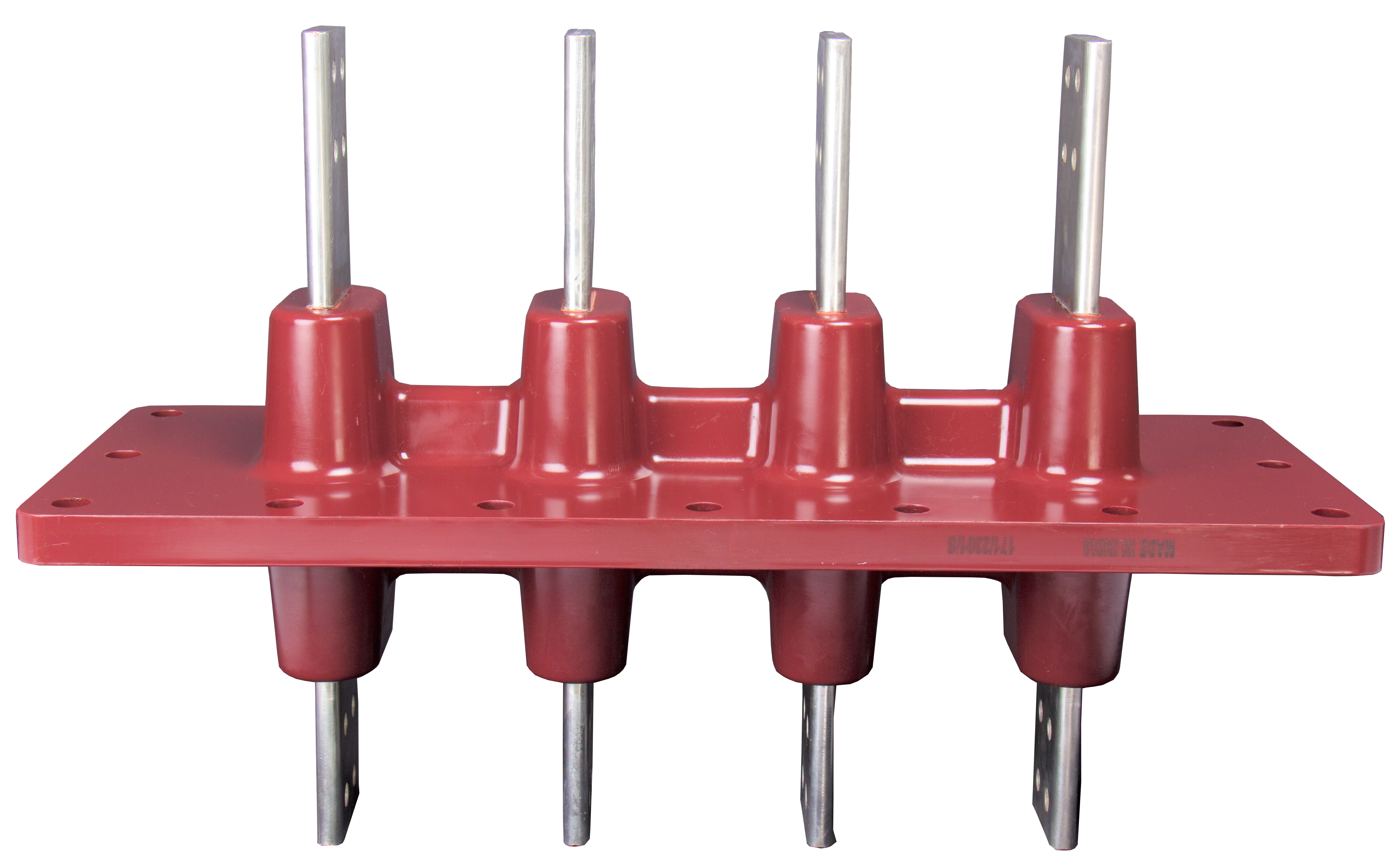

Available in single & multiple pole option.
Current ratings are offered from 250A to 4500A.
Different configurations available.
All bushings are 100% tested.
Specifications
| Pole type | Profile size | Conductor Material | Flange size | Flange thickness | Current rating |
|---|---|---|---|---|---|

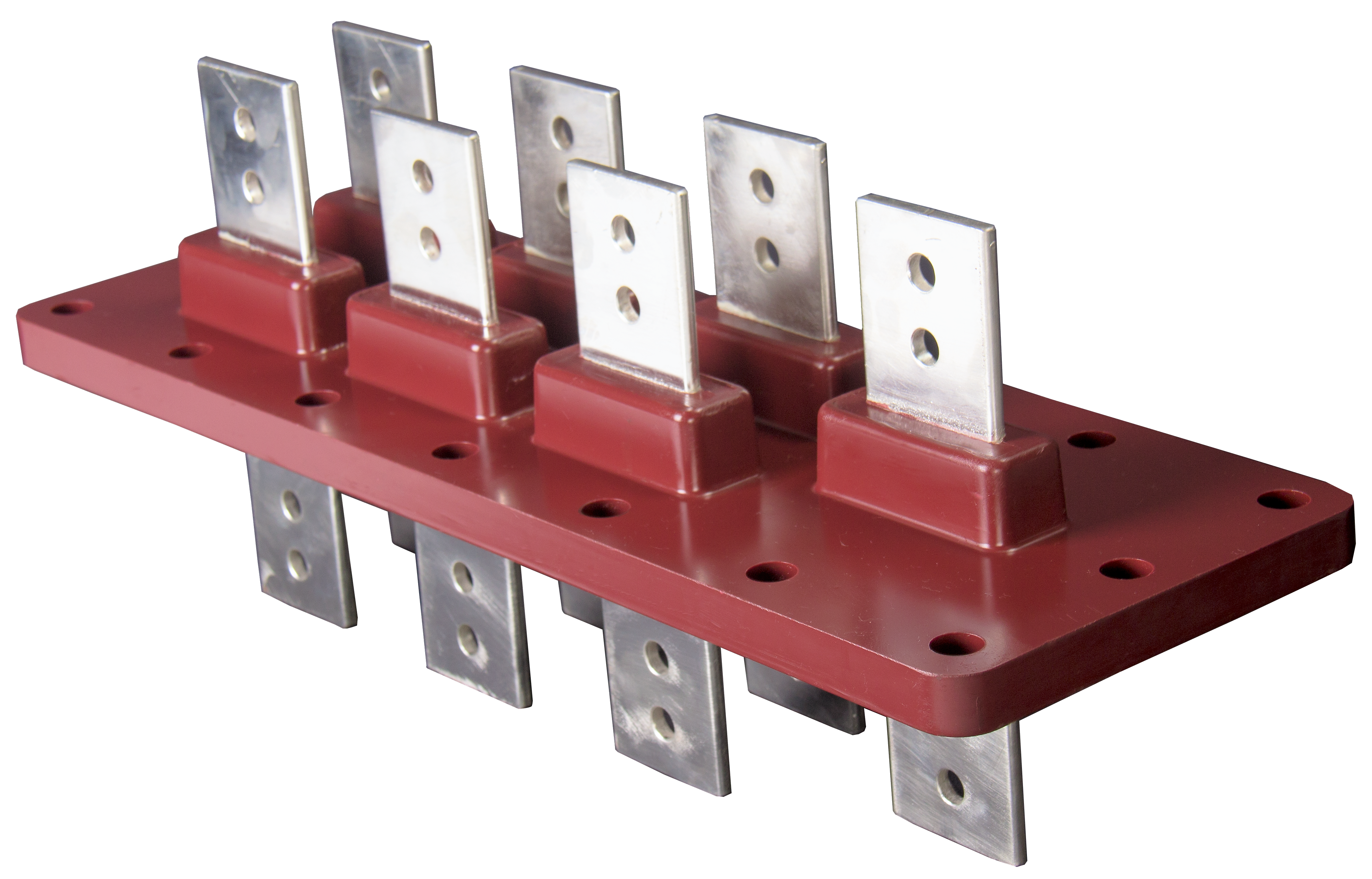

| 7 | 5 x 30 - 20 x 125mm | Copper / Aluminum | 420 x 172 - 783 x 244mm | 20 - 30mm | 250A - 4500A |
| 5 | 10 x 63 to 12 x 63mm | Copper | 575 x 222mm | 20 - 35mm | 800A - 1700A |

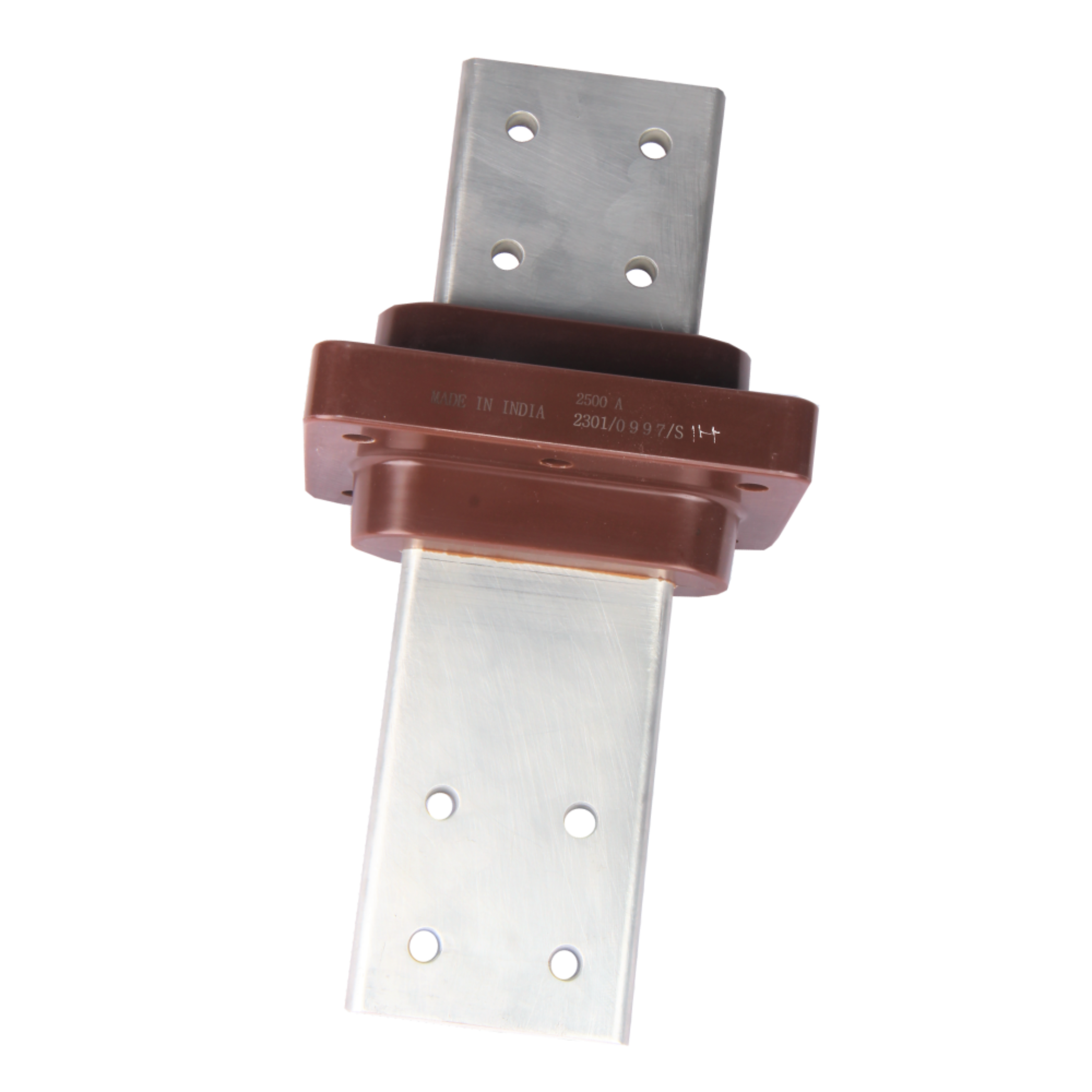

| 1 | 10 x 60 - 25 x 150mm | Copper / Aluminum | 125 x 180 - 147 x 245mm | 30mm | 850A - 4000A |
Note: For more details send online enquiry
