Oil level indicators – For Power transformer

Product Categories

Oil Level Indicator

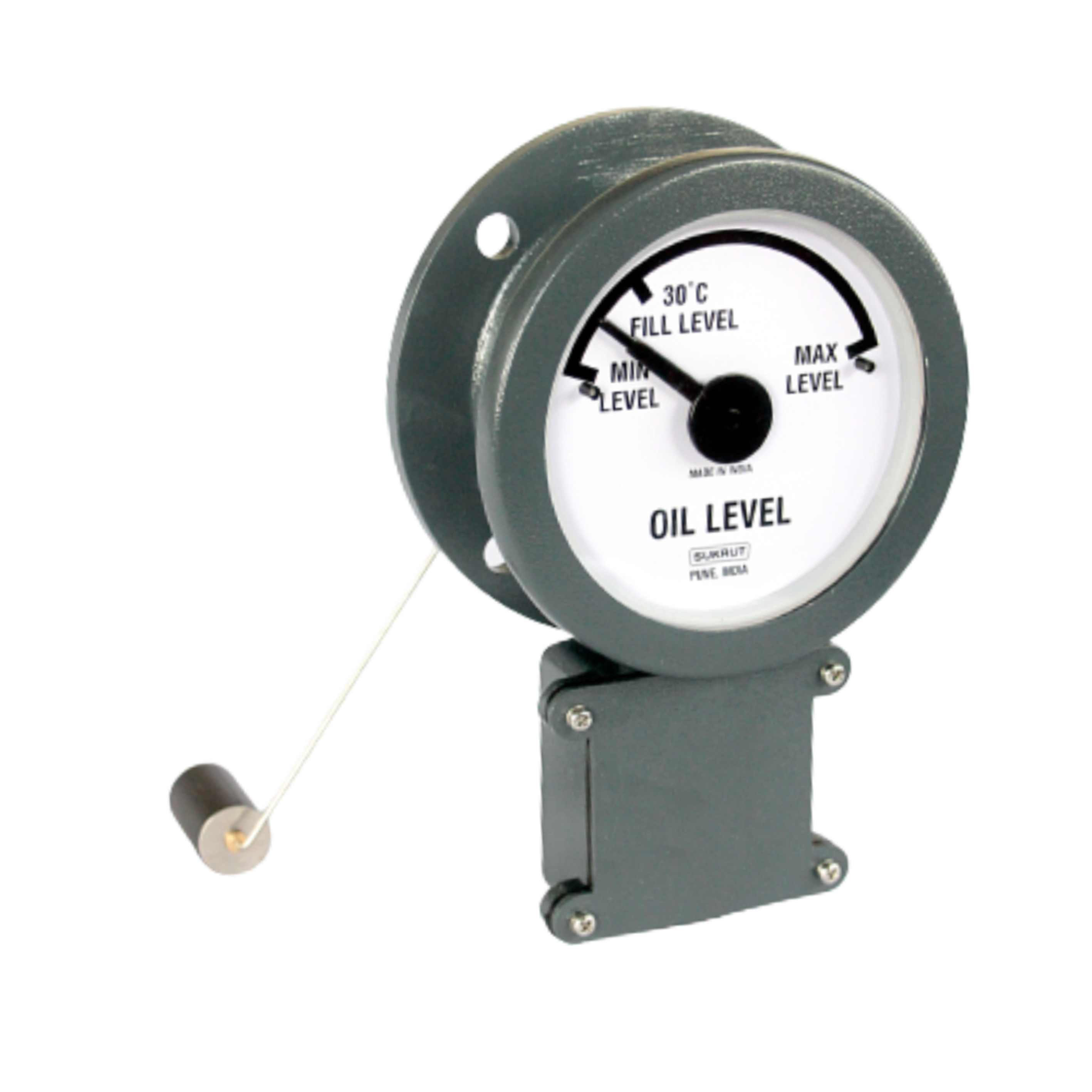

Model : SO-100

Oil level indicator continuously monitors the oil levels inside the conservator tank. In case of low or high oil level, the OLI operates one or two switches to prevent the transformer form any hazardous situation.

Key features

  • Light weight die cast aluminum body.

  • 4’’ dial with radial type float arm.

  • Oil level reading via clear transparent UV resistance polycarbonate.

  • Nitrophyl float suitable for transformer oil.

  • Max 2 nos of changeover contacts.

  • Customised dial markings available.

  • IP-67 ingress protection.

  • C4-M-C5-M paint protection.

Technical details

  • Operating temperature : -10° to +115°C
  • Working pressure : 0 to 1 kg/cm²

Dial details

  • Dial size : 4 inch.
  • Marking : Black marking on white background.

Switch contacts

  • Switch for low oil level.
  • Switch for low & very low oil level.
  • Switch for high oil level.

Spares & Accessoires

  • Plug & socket.
  • Armored cable.

Note: For more details send online enquiry

Product Name Dial Size Download

SO-100

1” Vertical OLI For Power Transformer

 4 inch Download Brochure

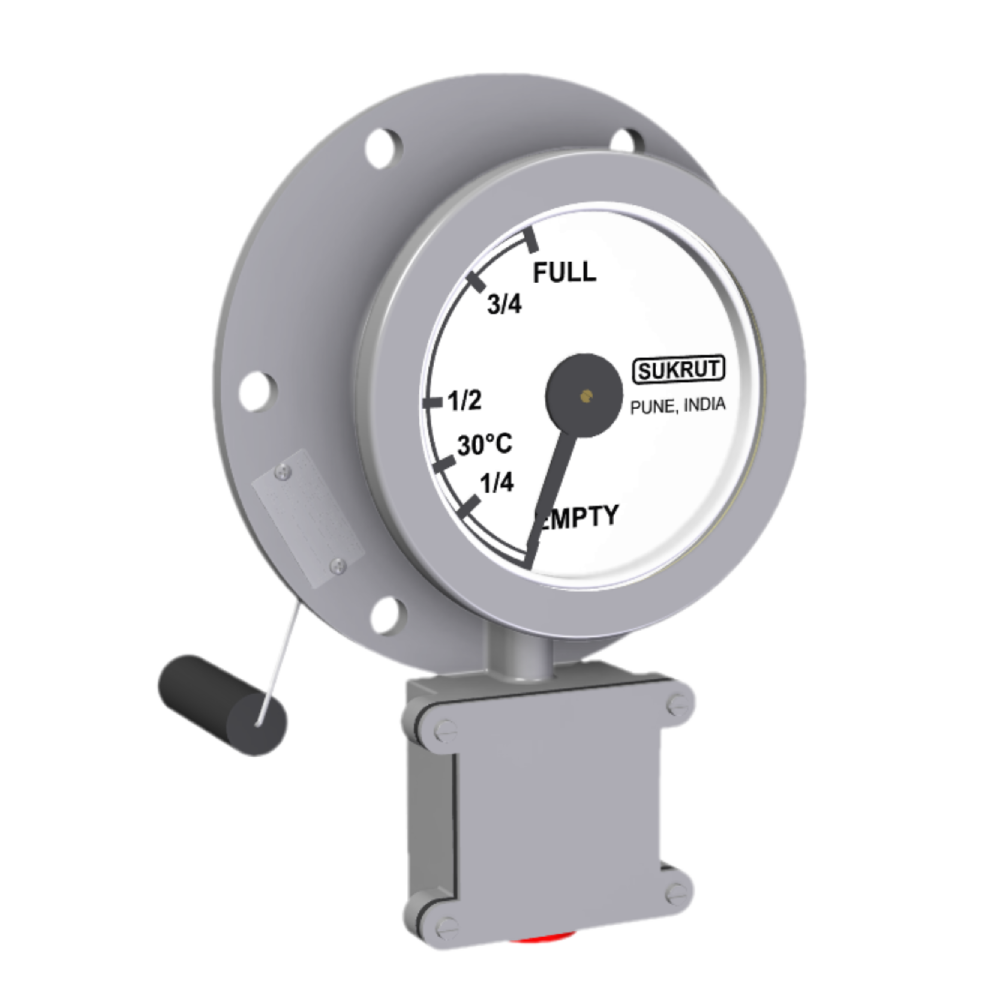

SO-4-M

For Power Transformer

 4 Inch Download Brochure

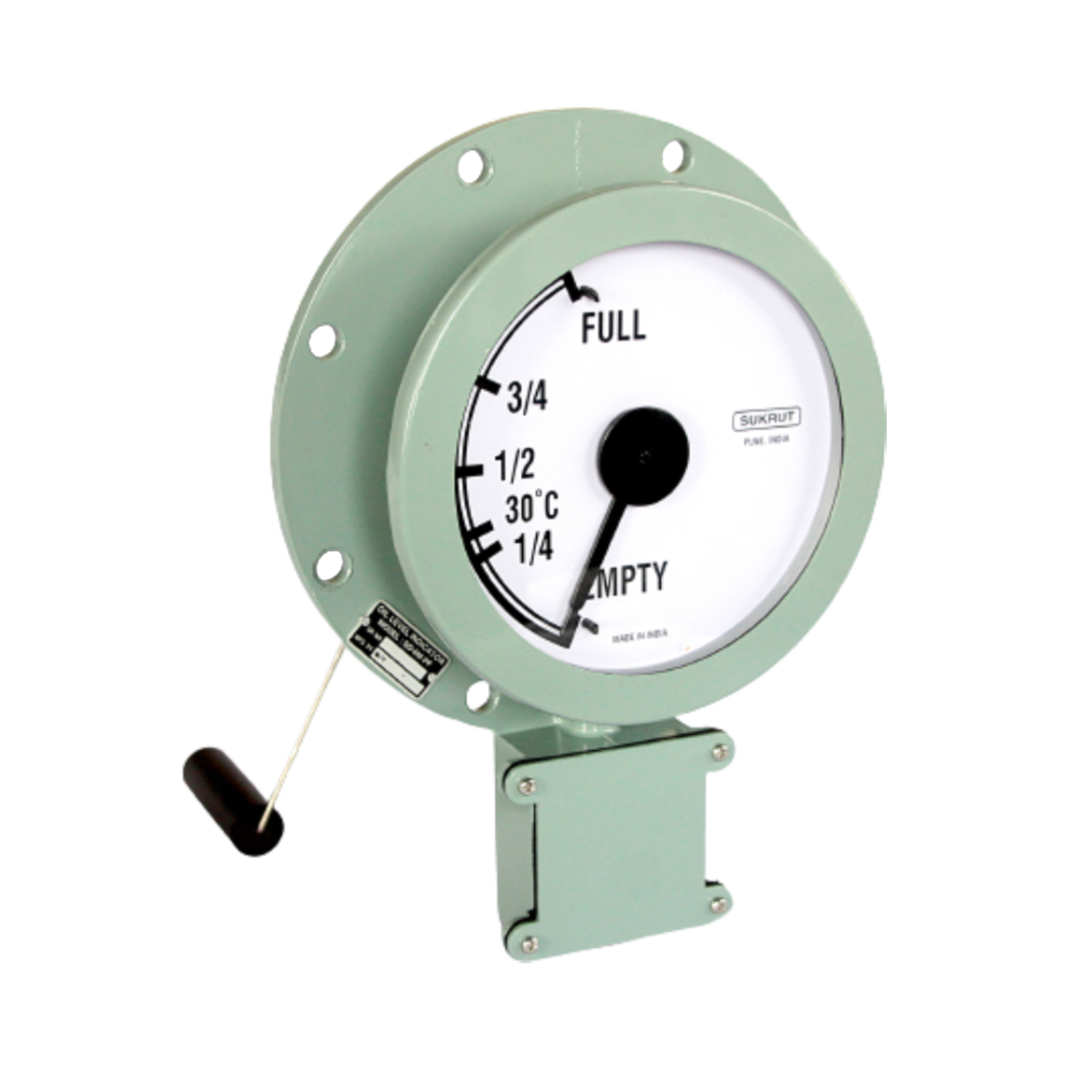

SO-6-M

For Power Transformer

 6 Inch Download Brochure

SO-HE-10

For Power Transformer

 10 Inch Download Brochure
