Terminal Box
Terminal Box (TBX) is designed to offer an easy, fast and reliable solution for connecting CT wires inside the transformer to external measuring systems.
1. MODELS & NUMBER OF TERMINALS
| Model | No. of terminals |
|---|---|
| SM2-XS | 2, 3, 5 |
| SM3-S | 4, 6, 9, 12 |
| SM2-L | 15, 18, 24, 36 |
| SM2-XL | 27, 37, 45, 53 |
2. NUMBER OF EXITS & CABLE ENTRY SIZE
| Model | No. of exits | Cable Entry Size |
|---|---|---|
| SM2-XS | 2 | M25 X 1.5 |
| SM3-S | 4 | M25 X 1.5 |
| SM2-L | 3/5 | M25 X 1.5 |
| SM2-XL | 4 | M50 X 1.5 |
3. SPARES & ACCESSORIES
- Cable Gland (2 Core / 4 Core)
- Shorting Links
- Bottom Gasket
4. GENERAL NOTES
- IP-67 Ingress Protection
- Available in C4-M & C5-M corrosion resistance
Note: For more details send online enquiry
| Product Name | Download |
|---|---|
|

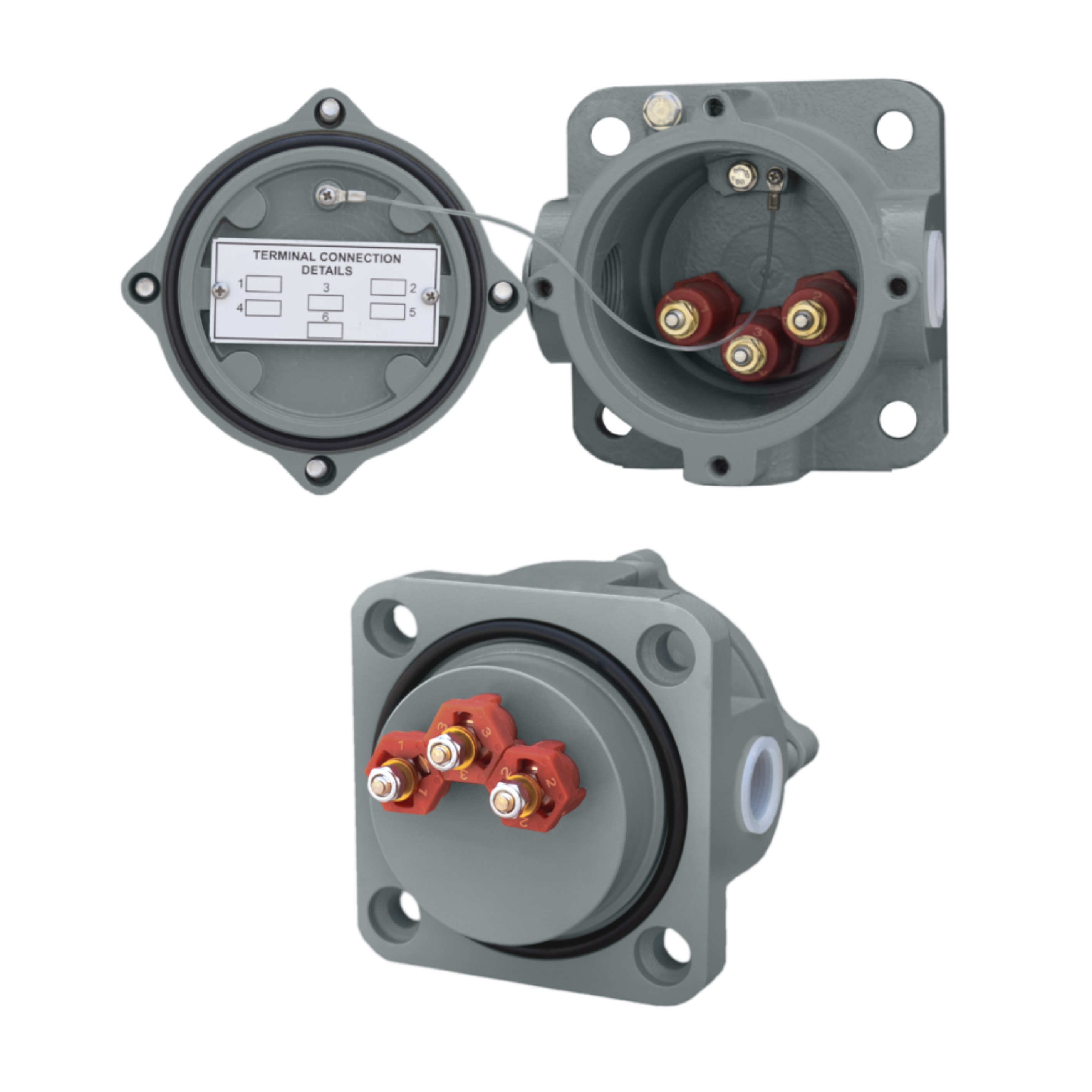

SM2-XS : For Distribution Transformer |
Download Brochure |
|

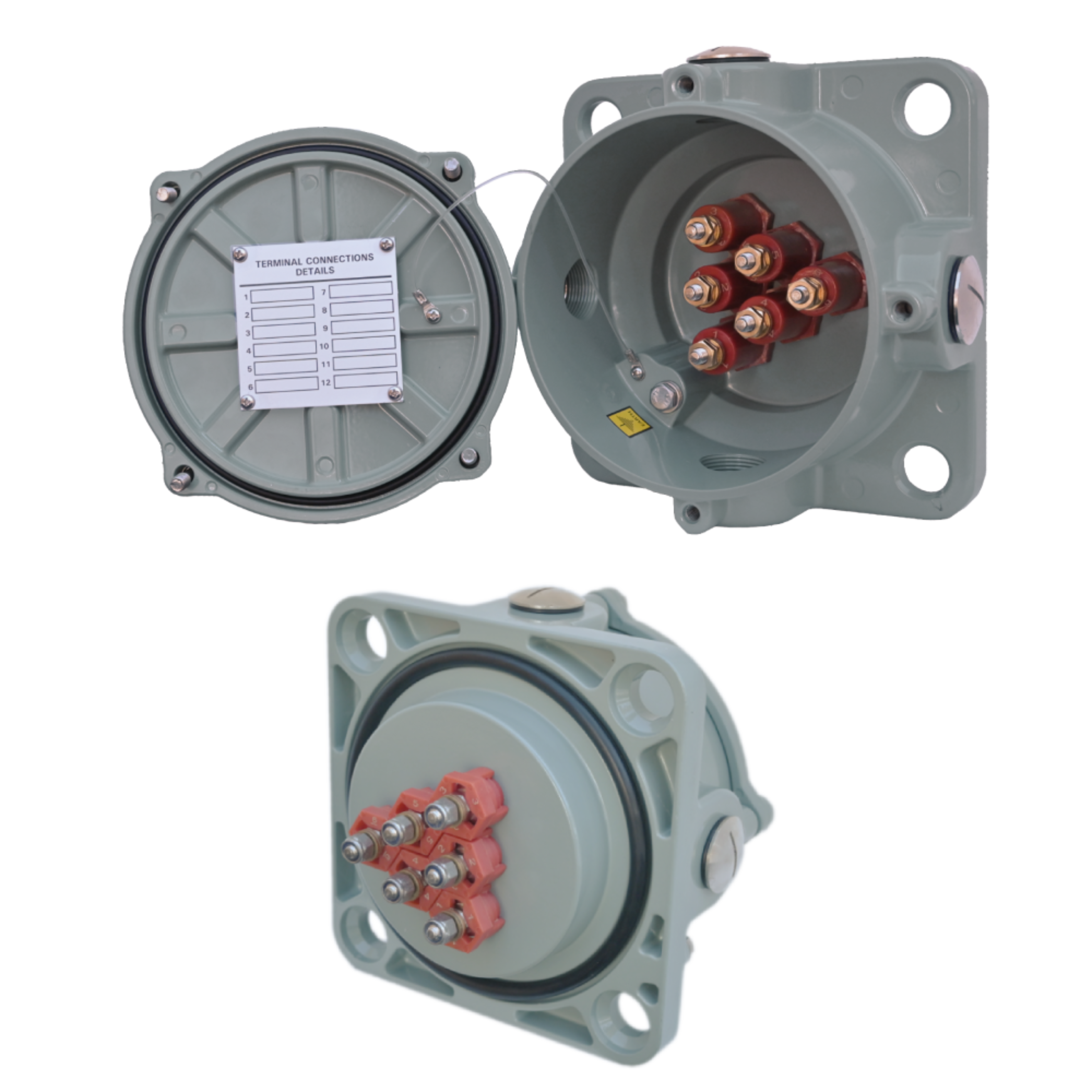

SM3-S : For Power Transformer |
Download Brochure |
|

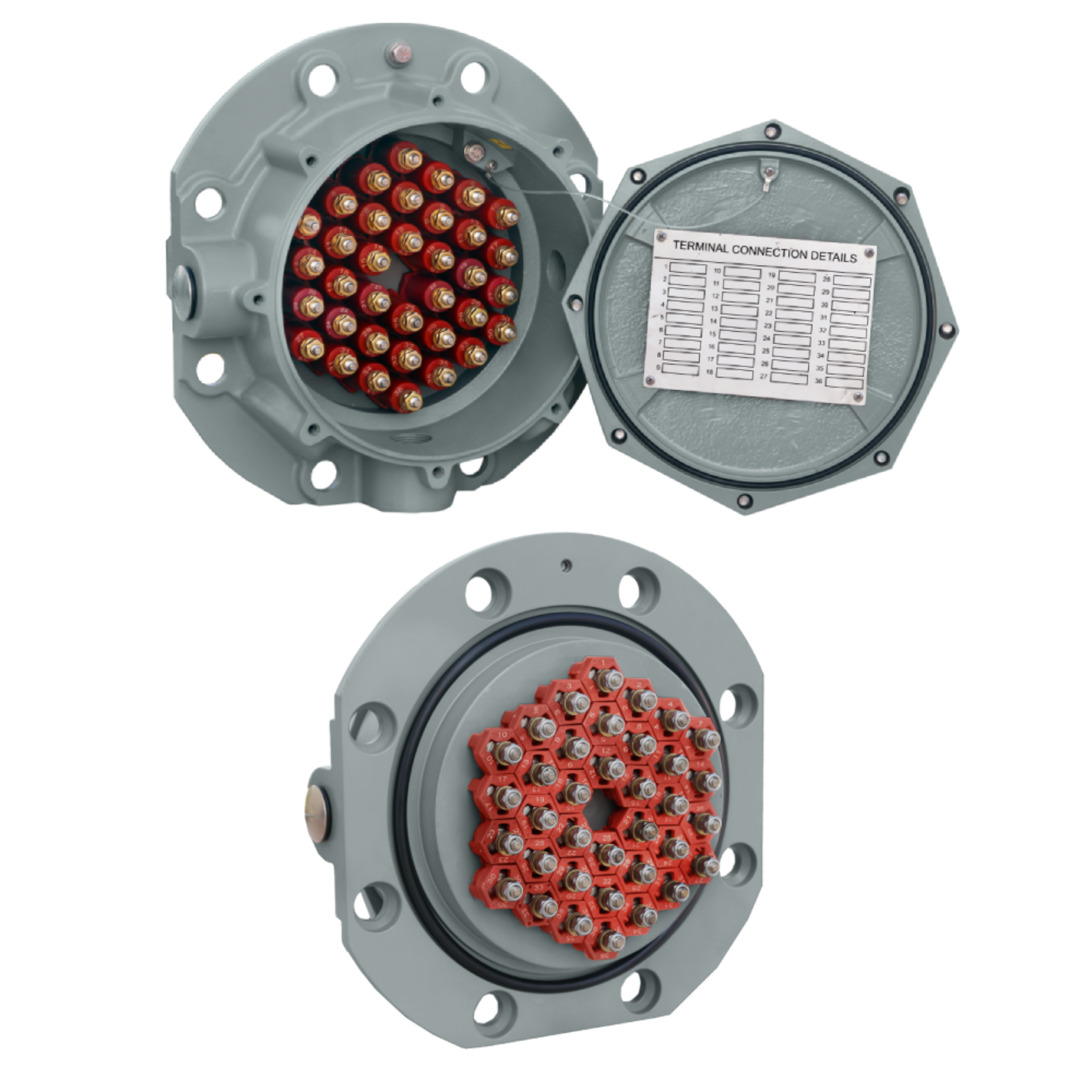

SM2-L : For Power Transformer |
Download Brochure |
|

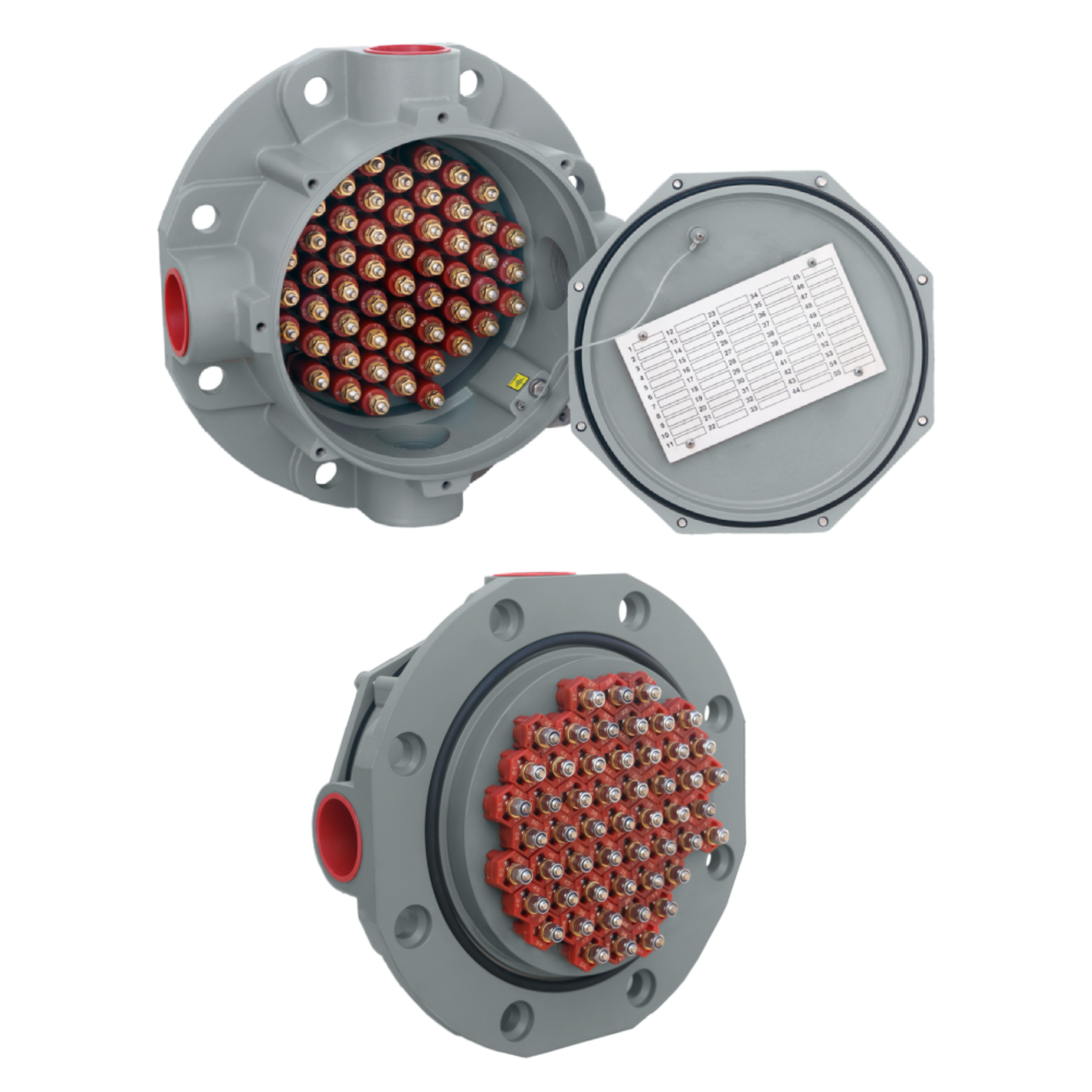

SM2-XL : For Power Transformer |
Download Brochure |
