Oil Level Indicator

Oil Level Indicator (OLI) is designed to indicate the insulating oil level in the conservator of a transformer.

1. CONSERVATOR

  • With or without Aircell

2. MOUNTING

  • Mounting on flat end plate cover or on circular wall of conservator
  • Vertical or inclined
  • Customer has to provide mounting pad on the conservator to suite the selected model

3. DIAL

  • Size: Round with 250, 150, 100, 80, 50 mm
  • Dial marking: EMPTY, 1/4, 1/2, 3/4, FULL or any Special Marking
  • Dial colour: Black marking on yellow / white background

4. SWITCH

  • No. of switches: 1 or 2 max
  • Switch for low oil level
  • Switch for low & very low
  • Switch for high oil level

5. MOVEMENT OF FLOAT

  • In a plane perpendicular or parallel to dial

6. GENERAL INFO

  • Please give all specifications as per your model requirement so that we can offer a suitable model
  • OLI with different specifications are not interchangeable
  • IP-67 Ingress Protection
  • Available in C4-M & C5-M corrosion resistance

Note: For more details send online enquiry

Product Name Dial Size Download

VI-25

1” Vertical OLI For Distribution Transformer

- Download Brochure

HI-50

For Distribution Transformer

2 Inch Download Brochure

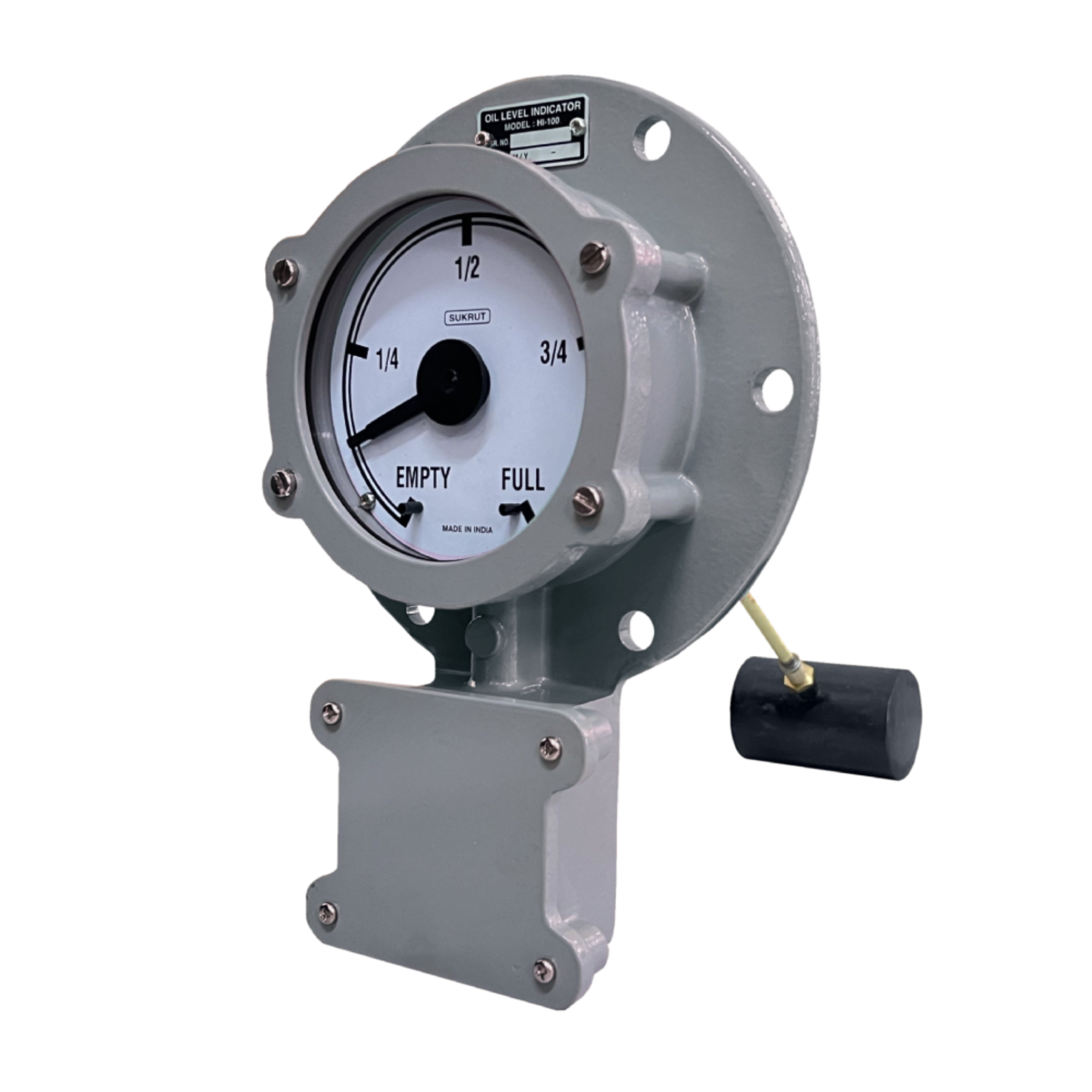

SO-4-M

For Distribution Transformer

4 Inch Download Brochure

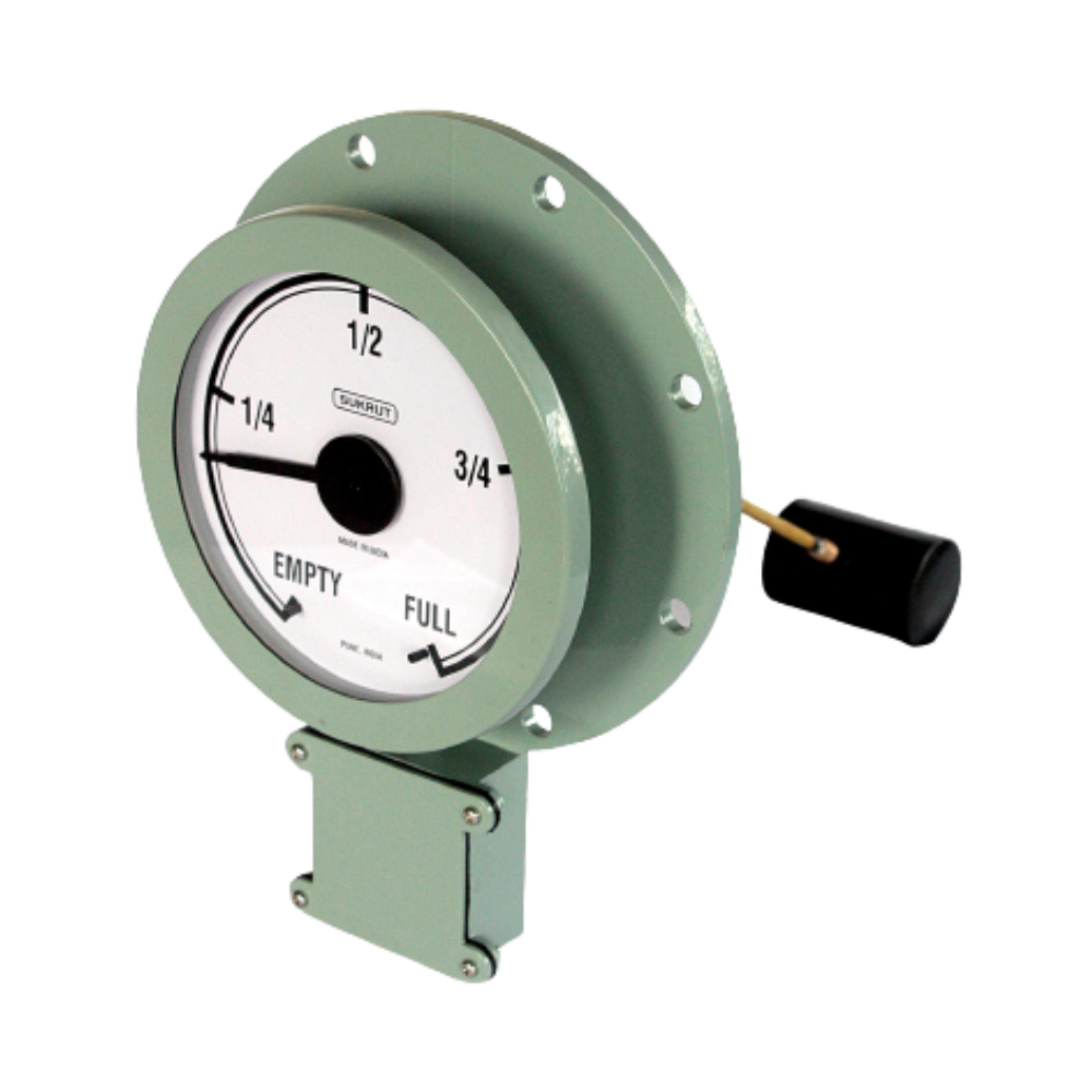

SO-6-M

For Power Transformer

6 Inch Download Brochure

SO-100

For OLTC or Distribution Transformer

4 Inch Download Brochure

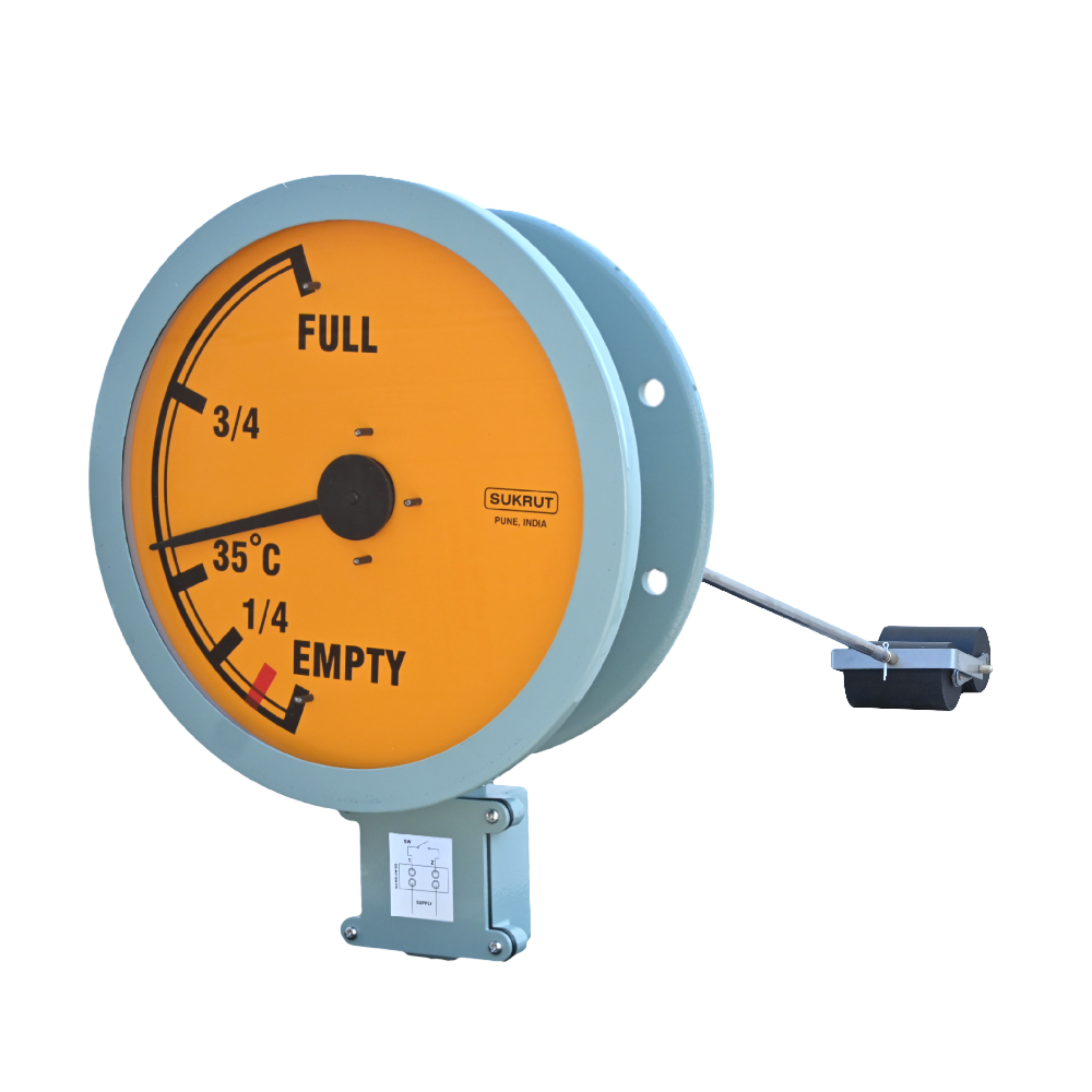

SO-HE-10-M-ATMS

For Power Transformer

10 Inch Download Brochure
