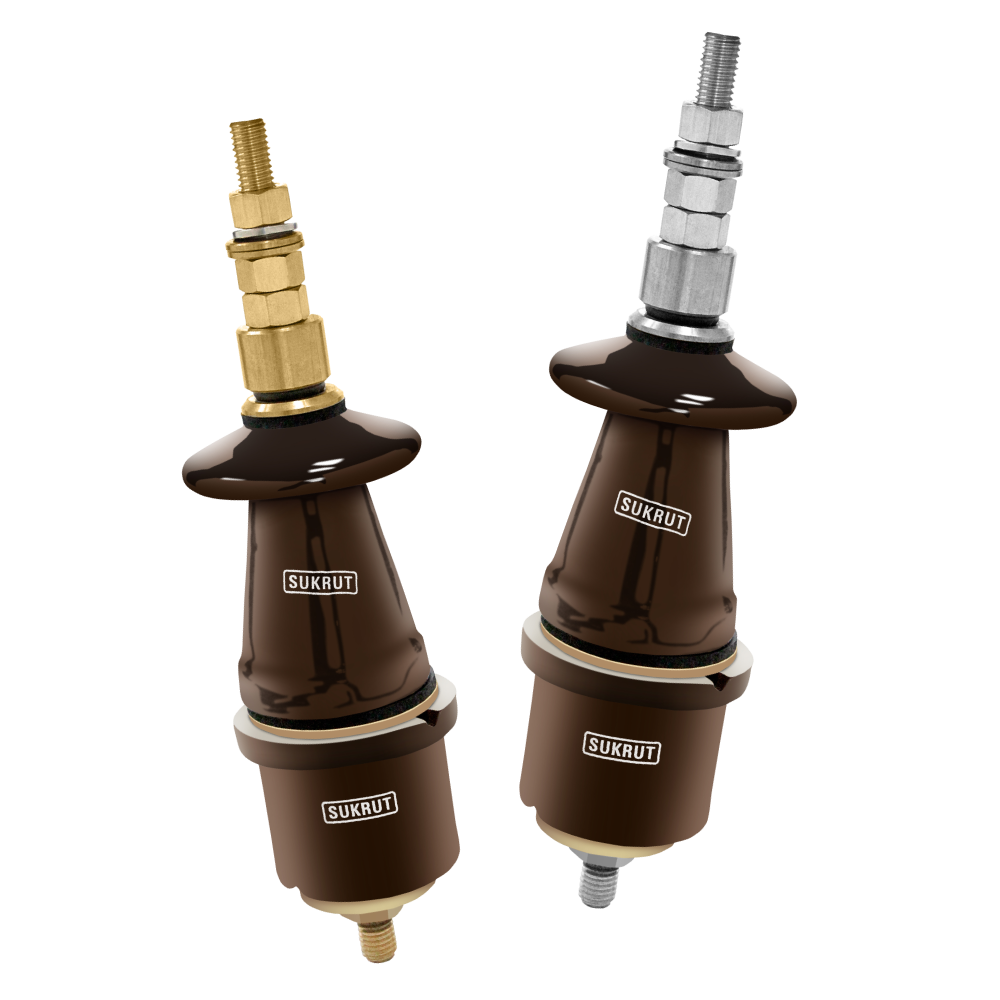

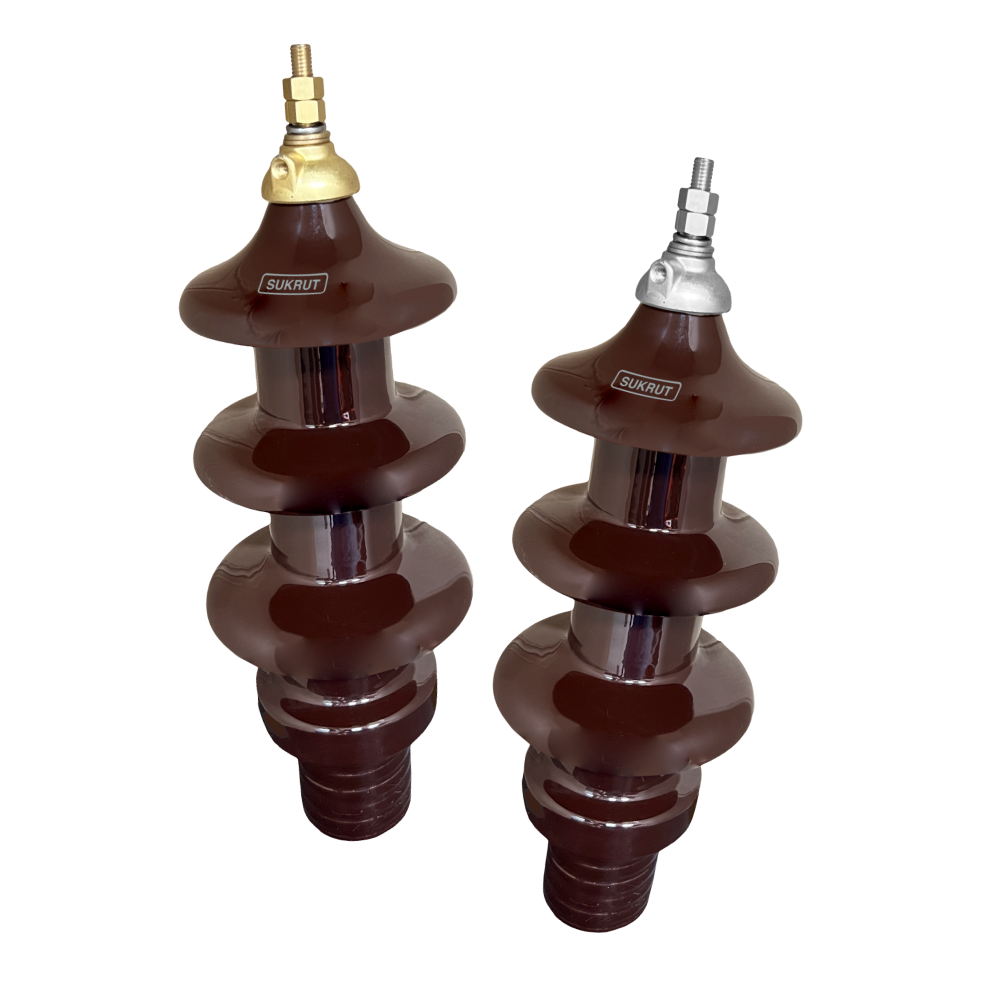

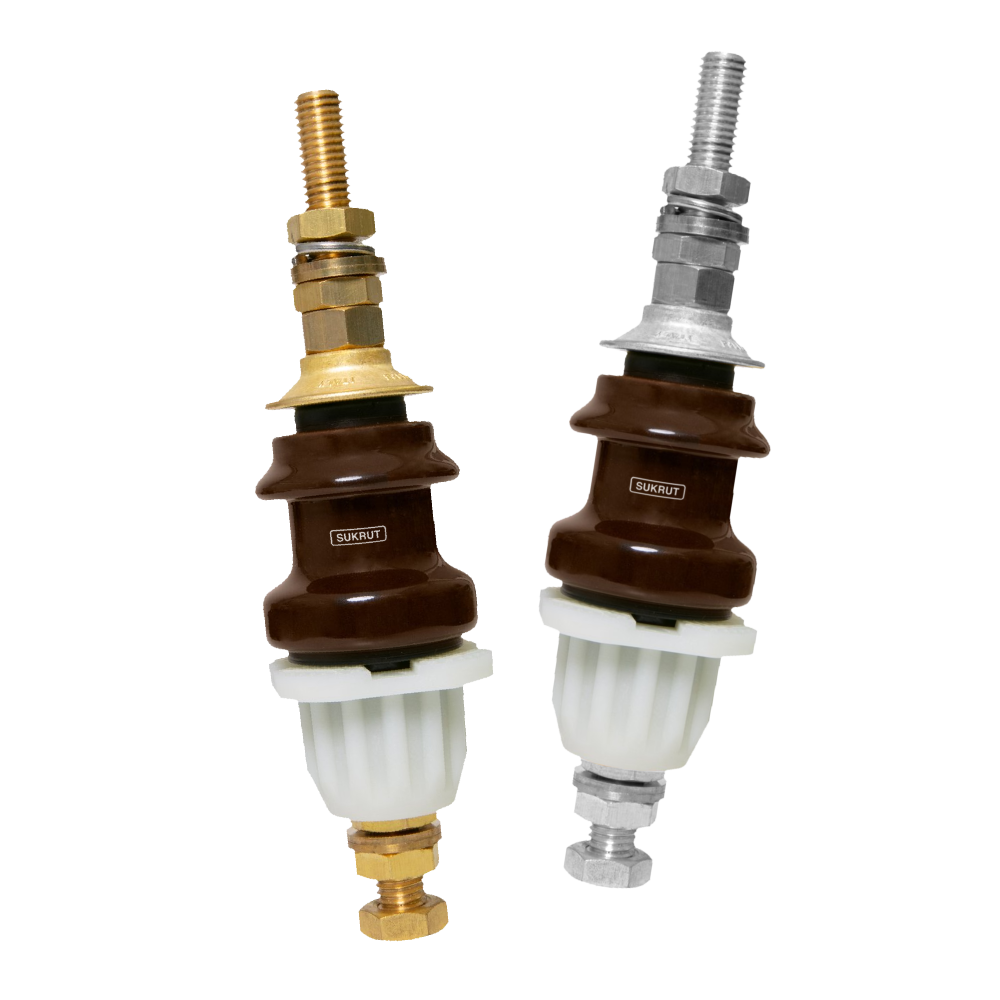

Porcelain Bushing
A transformer bushing is an insulating structure that facilitates the passage of an energized, current-carrying conductor through the grounded tank of the transformer.
| Parameters | Bushings |
|---|---|
| Maximum rated voltage | From 1 kV up to 52 kV |
| Maximum rated current | From 250 A up to 4500 A |
| Nominal creepage distance | From 290 mm up to 1655 mm |
| Standard references | DIN 42533, EN 50180 and IS 3347 |
| Rod design | Rigid stem / Split conductor / Drawlead |
Note: For more details send online enquiry
